3528 double rows LED strip light high brightness wholesale

FOB Reference Price:Get Latest Price
US $2.8-3.05 / Meters | 500 Meter/Meters (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Light Source:
LED
Item Type:
Light Strips
LED Light Source:
SMD3528
Type:
Flex LED Strips
Input Voltage(V):
DC5V/12V/24V
Lamp Power:
19.2W/M
Lamp Luminous Flux(lm):
6-7lm
CRI (Ra>):
80
Color Temperature(CCT):
WW2700-3200K/NW4000-4500K/W6000-6500K
Working Temperature(℃):
-20 - 40
Working Lifetime(Hour):
50000
Lamp Body Material:
Copper
Certification:
CCC, CE, EMC, LVD, PSE, RoHS, UL
Emitting Color:
Changeable
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Sparta or OEM
Model Number:
SPT-3528LV-240
LED Quantity:
240pcs/meter
LED Chip Brand:
Epistar/SANAN
PCB Width:
14mm
Rated Power/M:
19.2w
Actual Power/M:
12w
Color:
3000K/4000K/6500K/R/G/B/Y
Beam Angle:
120 Degree
Ingress Protection:
IP20/IP65/IP67
Warranty:
2 years
Supply Ability
Supply Ability:
1500000 Meter/Meters per Month led light
Packaging & Delivery
Packaging Details
3528 double rows LED strip light high brightness wholesale
250 meters/ctn
Meas.:44*28.5*24CM
G.W.:7kg
1* 5 Meters/Roll +zip bag+Neutral label + User manual + carton
Port
Shenzhen
Lead Time :
10 working days after deposit confirmed led light

SBARTAR

3528 double rows LED strip light high brightness wholesale

1.Specification 3528 double rows LED strip light high brightness wholesale

Item

SPT-3528LV-240WW
LED typeSMD 2835 240leds/M
LED chip brandEpistar/Sanan
Lumen per led6-7lm
Input voltageDC5V/12V/24V optional
Max. power19.2W/M
FPC width14mm
LED emitting colorWhite 2800-3200K (other color is optional)
Beam angle120 degree
Waterproof gradeIP20/IP65/IP67 optional
Minimum cut length1/3/6 led  can be cutted as a group(along cutting marks)
Working temperature -20℃~+40℃
Working humidity 5%~95%
Material LED+PVC+PFC+copper
Warranty2 years warranty

12V 3528 240D WW

2.Discription 3528 double rows LED strip light high brightness wholesale

  • High brightness and Ra LEDs, FPC board,can be cutted every 3/6 leds.

  • IP20/ IP65/IP67 can be chosen,DC12/24V,30leds/m .

  • Low power consumption,high efficiency,high luminous.

  • Factory price,direct sale,whole sale for you,can do OEM.

  • Energy-saving,super service life over 25000 hours,without maintenance.

  • Various color or temperature to chose (R/G/B).

  • Flexible ribbon for curving around bends.



1

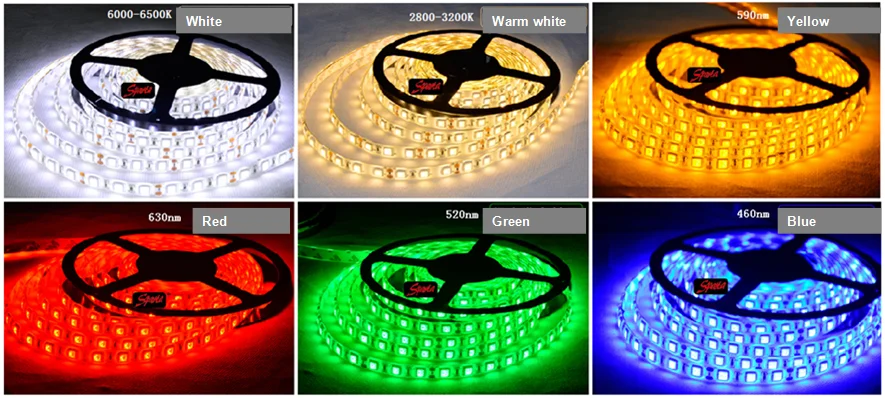

Different color optional



3.Accessories and way of connection  3528 double rows LED strip light high brightness wholesalesmd3528-12v-led-strip-06-logo

4.Applications 3528 double rows LED strip light high brightness wholesale

  • Personal DIY home decoration
  • Route instructions and exterior decorative outline
  • Backlit billboards, advertising signs, channel signal signs
  • Festival decorations, activities,venue set, exhibition decoration,hall decoration
  • Channel letter lighting using for stores,restaurants,bars
  • Hotels and other entertainment decorated, KTV

application pf sparta led strip

5.package   3528 double rows LED strip light high brightness wholesale

-1_06

6.Certifications 3 528 double rows LED strip light high brightness wholesale-1_09





7.company view 3528 double rows LED strip light high brightness wholesale

SPARTA-0

8.contact  3528 double rows LED strip light high brightness wholesale

NameSherry Huang
Emailsales05(at)spartaled.com
Telephone+86-755-36615618
Fax+86-755-84866606
Mobile+86-18476581237
Websitewww.spartaled.com
Add

4th floor A5 Bld,Yinlong Industrial Zone,292#,Shenshan Rd,

Longgang District,Shenzhen City,China.





9.Other product

15R 72720X720

 10.Why chose SPARTA



  1. 5 years making led strip,professional in LED STRIP,LED TUBE and LED panel light;
  2. CE&RoHS PSE ETL TUV-Mark FCC , ISO 9001 certificated;
  3. 150 workers and 8000M² workshop factory,so you can get guarantee of our products
  4. We are factory with experienced engineer team,multiple solutions for your special requirements.

Welcome your inquiry and visiting our factory !
