Aluminum heat sink and glass cover LED T8 Glass 4'' tube, 4 ft led tube lighting for retail

FOB Reference Price:Get Latest Price
US $7-9 / Pieces | 1 Piece/Pieces (Min. Order)
Lamp Power(W):
22
Emitting Color:
Changeable
Report Suspicious Activity
Overview
Quick Details
Light Source:
LED
Item Type:
Tube Lights
LED Light Source:
2835
Warranty(Years):
3
Input Voltage(V):
AC 85V-AC 260V
Lamp Luminous Flux(lm):
2640
Lamp Luminous Efficiency(lm/w):
120
CRI (Ra>):
80
Color Temperature(CCT):
Pure White
Working Temperature(℃):
-20 - 50
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum, Aluminum
IP Rating:
IP33, IP33
Certification:
CCC, CE, EMC, LVD, PSE, RoHS, SAA, UL, CE, RoHS, UL
Place of Origin:
Guangdong, China (Mainland), Guangdong, China (Mainland)
Brand Name:
OEM, OEM
Model Number:
T8, T8
Power:
22W
Input:
AC100V-AC240V
Length:
1.5m
Cover:
1/3 Aluminu+PC
Supply Ability
Supply Ability:
200000 Piece/Pieces per Month Aluminum heat sink and glass cover LED T8 Glass 4'' tube, 4 ft l
Packaging & Delivery
Packaging Details
packing of Aluminum heat sink and glass cover LED T8 Glass 4'' tube, 4 ft led tube lighting for retail:
paper box + carton
Port
shenzhen

Aluminum heat sink and glass cover LED T8 Glass 4'' tube, 4 ft led tube lighting for retail



Specifications
1.Input voltage:AC90-300V
2.Working temperature: -20 to 50°C

3.Length: 60cm,120cm,150cm(customized)
4.Power consumption: 9w,18w,22w

5. Color temperature:6,000 to 6,500K /4,000 to 4,500K / 2,800 to 3,000K

6. Certificates:  UL/TUV/CE/FCC standard

11. Life span:50000 hours



Advantages

1. Caps rotatable, easy to adjust beamimg angle

2. Isolating Circuit design,UL/TUV/CE/FCC Certificated

3. Wide scope input voltage:AC 90V-300V

4. Professional design against electric shock

5. Power Factor reach up to 95%

6. Perfect light effect,no glare.

7. Aluminum heat sink body ensure long life

8. Less 1% attenuation after 3,000 hours

9. replacement for conventional fluorescent tube





ItemColorCCTLED QtyInput VoltagePower (W)Power DriveLight EfficiencyOutline MaterialPacking
Min.Typ.Max.EfficiencyPFRa≥80pcs/ctnMEAS
0.6M 2Feet L588mm×26mm // SMD2835 9W
T8-9WL06-UL90AWM3000±200K90 PCSAC100-277V8.1910.4≥90%≥92%120LM/W1/3 Aluminu+PC3065*23.5*19.5cm
NW4000±300K
CW6500±500K
T8-9WL06-UL90WM3000±200KPC
NW4000±300K
CW6500±500K
1.2M 4Feet L1198mm×26mm // SMD2835 18W
T8-18WL12-UL160AWM3000±200K160 PCSAC100-277V16.21820.3≥92%≥95%120LM/W1/3 Aluminu+PC30125*20*19.5cm
NW4000±300K
CW6500±500K
T8-18WL12-UL160WM3000±200KPC
NW4000±300K
CW6500±500K
1.5M 5Feet L1498mm×26mm // SMD2835 22W
SPT-22L15-176AWM3000±200K176 PCSAC100-277V19.82224.7≥92%≥95%120LM/W1/3 Aluminu+PC25155*20*19.5cm
NW4000±300K
CW6500±500K







Lumen(lm/LED)
LED TypeWhiteRedGreenBlueYellow

SMD5050

12-14lm 16-18lm







0.3-0.5lm











2.97-3.5lm











1-1.151lm





0.3-0.5lm

SMD5054

20-22lm
SMD2835

10-12lm 20-22lm 24-26lm

SMD3528

5-6lm 6-7lm

SMD2216

8-10lm

SMD3014

10-12lm

SMD5730

50-55lm







2.Product show 5000k fsl led tube for commercial lighting
  •  Aluminum-Plastic shell, compatable with more than 600 kinds of  ballast,directly replace fluorescent lamp.
fsl led tube
  • Aluminum PCB, with high tensile aluminum inside plastic shell,have perfect heat dissipation
fsl led tube
  • High efficiency 110-140lm/w. SMD2835, Epsitar LED Chip
fsl led tube

Related Items(UL models):
9W T8 tube

ItemLengthDimensionPowerLight EfficiencyRaInput VoltagePFEmitting colorCover
T8-9WL06-UL90A598mmΦ26mm9w120LM/W≥80AC100-277V≥0.923000K/4000K/6500K1/3 Aluminu+PC
T8-9WL06-UL90598mmΦ26mm9w120LM/W≥80AC100-277V≥0.923000K/4000K/6500KFull PC

18W T8 tube

ItemLengthDimensionPowerLight EfficiencyRaInput VoltagePFEmitting colorCover
T8-18WL12-UL160A1198mmΦ26mm18w120LM/W≥80AC100-120V≥0.953000K/4000K/6500K1/3 Aluminu+PC
T8-18WL12-UL1601198mmΦ26mm18w120LM/W≥80AC100-120V≥0.953000K/4000K/6500KFull PC



22W T8 tube

ItemLengthDimensionPowerLight EfficiencyRaInput VoltagePFEmitting colorCover
SPT-22L15-176A1498mmΦ26mm22w120LM/W≥80AC100-120V≥0.953000K/4000K/6500K1/3 Aluminu+PC





3.Packing 5000k fsl led tube for commercial lighting

fsl led tube

A. Paper box+Gift box+carton(customerized)

B. Paper box+carton(neutral packaging)

C. EPE Foam+ carton(neutral packaging)

fsl led tube

 fsl led tube



4.Corner View of 5000k fsl led tube for commercial lighting

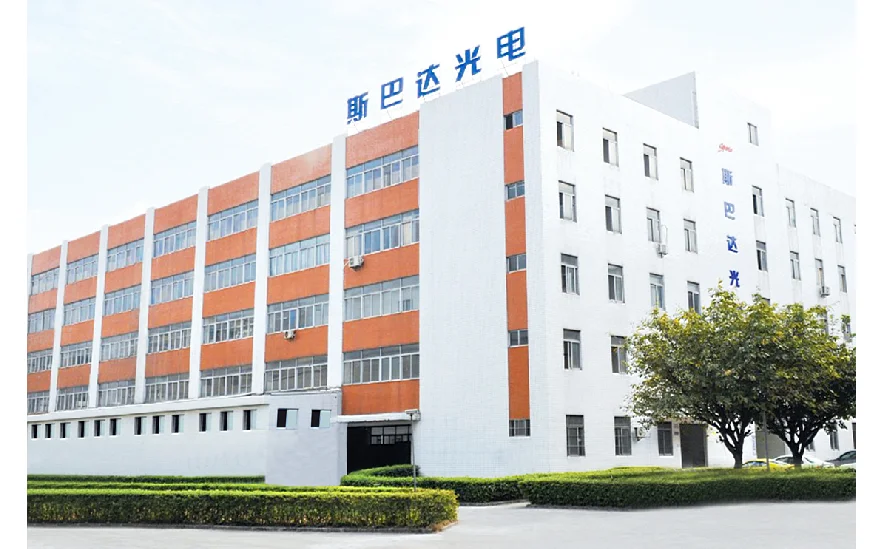

  SPARTALED is a professional led manufacturer with its own R&D Department and well-equipped machines such as the s SMT Machines,High efficiency Extrunder,Programmable Temperature&Humidity Chamber,covering an area of 8000 square meeters with more than 100 staffs.Spartaled mainly focus on high voltage led strips,led tube and led panel lights, and a lot of products are our patent. We have certification of CE,RoHS,ERP,TUV,UL,DLC,FCC,SAA,PSE and ISO9001:2008.

 fsl led tube



5.Certifications of 5000k fsl led tube for commercial lighting



Spartaled LED lights exported all over the world, especailly to the Europe, North America, Russia,Japan,Brazil,United States,UK etc, accordingly we all different kinds of certifications to the market, such as the CE, RoHS,TUV,UL,DLC,SAA,FCC,PSE and ISO9001:2008 fsl led tube
